Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile

  • 1
  • 2

Supply Ability : 1000units per month

Model : FAT-QGJX1

Model Number : ZJJX-001

Passing Capacity : Approx. 30 persons per minute

MOQ : 1 sets

Delivery Time : 30 to 90 days

Motor : Model 80 Eccentric Shaft Brushless Motor, 24V 80W

Payment Terms : L/C,D/A,D/P,T/T

Mounting Dimension : 340mm*210mm

Movement Operating Voltage : DC24V

Price : Discuss based on needs

Required Top Cover Height : ≥190mm

Solenoid Valve : DC24V

Gate Opening & Closing Time : Approx. 0.6 seconds

Brand Name : GUIANKEJI

Operating Ambient Temperature : -30℃ ~ 60℃

Certification : EMC-FCC

Place of Origin : China

Packaging Details : Wooden case

Contact Now

Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement
High-performance movement mechanism designed for full automatic tripod turnstiles, providing reliable access control with advanced security features.
Technical Specifications
Parameter Item Parameter Value
Model FAT-QGJX1

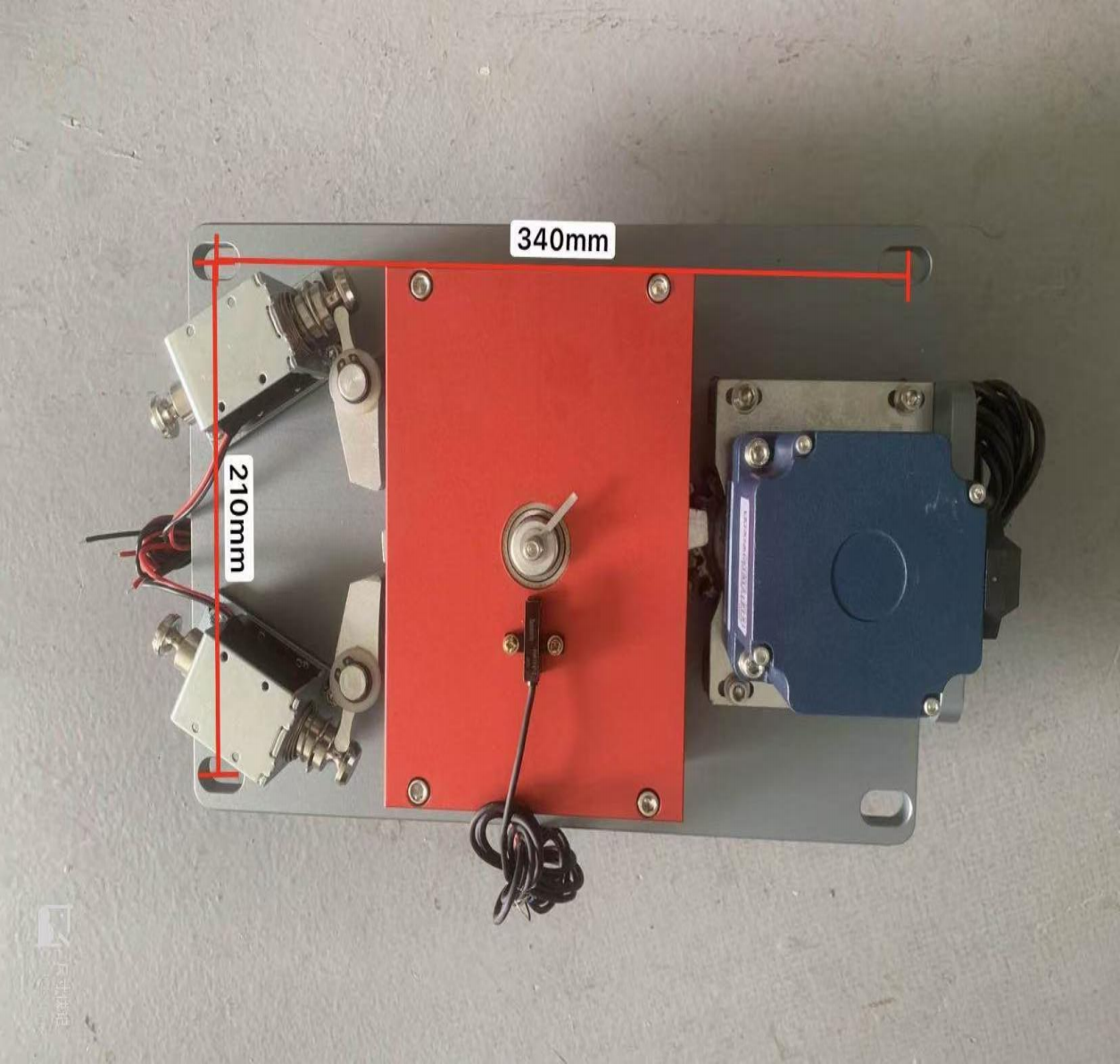

Mounting Dimension 340mm × 210mm
Required Top Cover Height ≥190mm
Solenoid Valve DC24V
Movement Operating Voltage DC24V
Motor Model 80 Eccentric Shaft Brushless Motor, 24V 80W
Control Signal Switch Signal
Passing Capacity Approx. 30 persons per minute
Card Reader Mounting Positions 2 sets
Gate Opening & Closing Time Approx. 0.6 seconds
Operating Ambient Temperature -30℃ to 60℃
Key Features & Functions
  • Driven by high-power motor with electromagnetic locking system that resists unauthorized pushing and automatically releases only when arm resets to zero position
  • After card verification, motor rotates arm 5-10 degrees as passage prompt, allowing light push to drive automatic rotation to designated position
  • Reverse pushing triggers electromagnetic lock that releases only when arm returns to zero position
  • Eliminates locking defects of clutch-type movements, preventing unauthorized forced access through repeated pushing
  • Quieter and vibration-free operation with auto rotation, non-overheating electromagnet, and reliable anti-reverse rotation angle control
  • Advanced technology with premium appearance, ideal for high-end venues and applications
Product Images
Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile
