Tripod Turnstile Mechanism L-shaped Tripod Turnstile Equipped with Electromagnet

High-security tripod turnstile mechanism featuring L-type design with electromagnet locking system for controlled access management.

Technical Specifications

Parameter Item	Parameter Value
Model	FAT-QZDS07

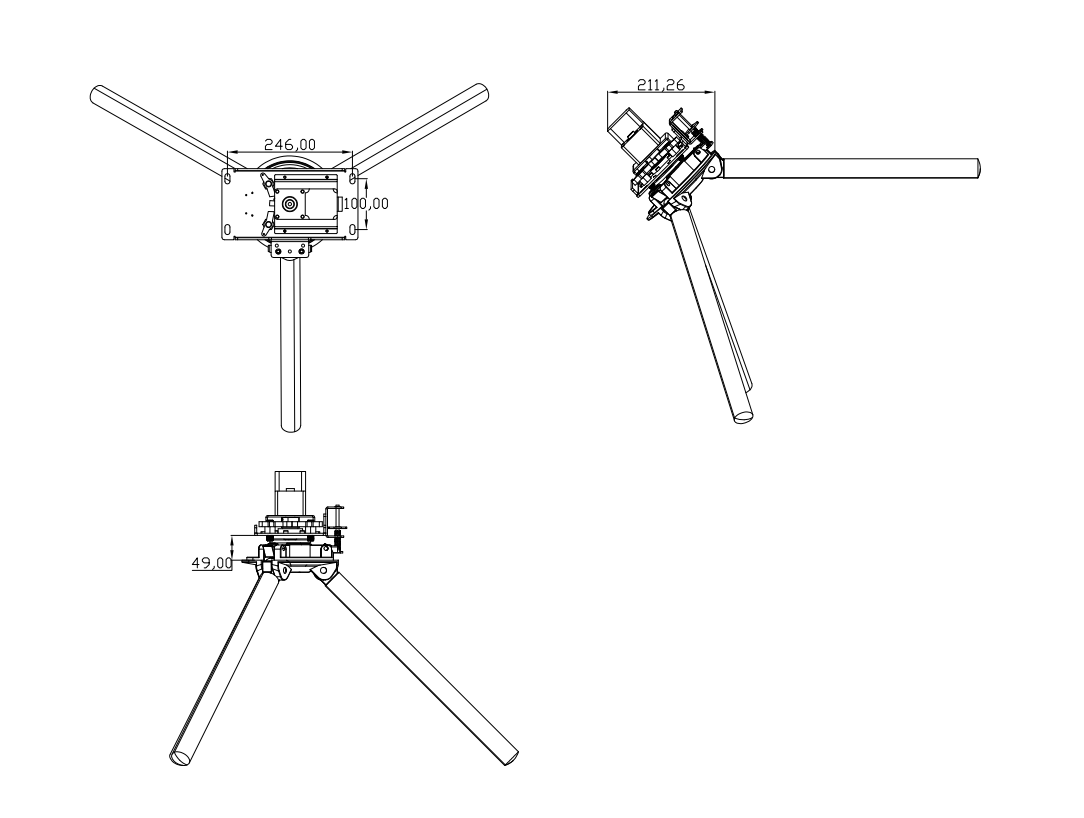

Overall Mounting Dimension	246*100mm
Recommended Cabinet Width	≥220mm
Solenoid Valve	DC24V
Operating Voltage of Movement	DC24V
Motor	24V 40W, L-60 Brushless Motor
Control Signal	Switch Signal
Passage Capacity	Approx. 30 persons/min
Card Reader Mounting Positions	2 pcs
Gate Opening & Closing Time	Approx. 0.6s
Operating Ambient Temperature	-30℃ ~ 60℃

Key Features

Full-automatic operation supported. After card swiping, the gate opens slightly as a prompt for passage. Auto-reset arm function upon power-on.
The solenoid valve remains de-energized in standby mode. When pushing the arm without authorized access, the solenoid valve activates to lock the corresponding passage direction. Once pushing stops and the rotary arm resets to zero position, the solenoid valve deactivates for the next operation cycle.
Compared with conventional full-automatic tripod turnstiles with clutches, this movement delivers smoother pushing experience. Traditional clutch-type movements allow partial arm rotation after clutch release; repeated pushing may force unauthorized passage. This design completely eliminates such risk — the rotary arm cannot be pushed without card authorization, ideal for high-security premises.

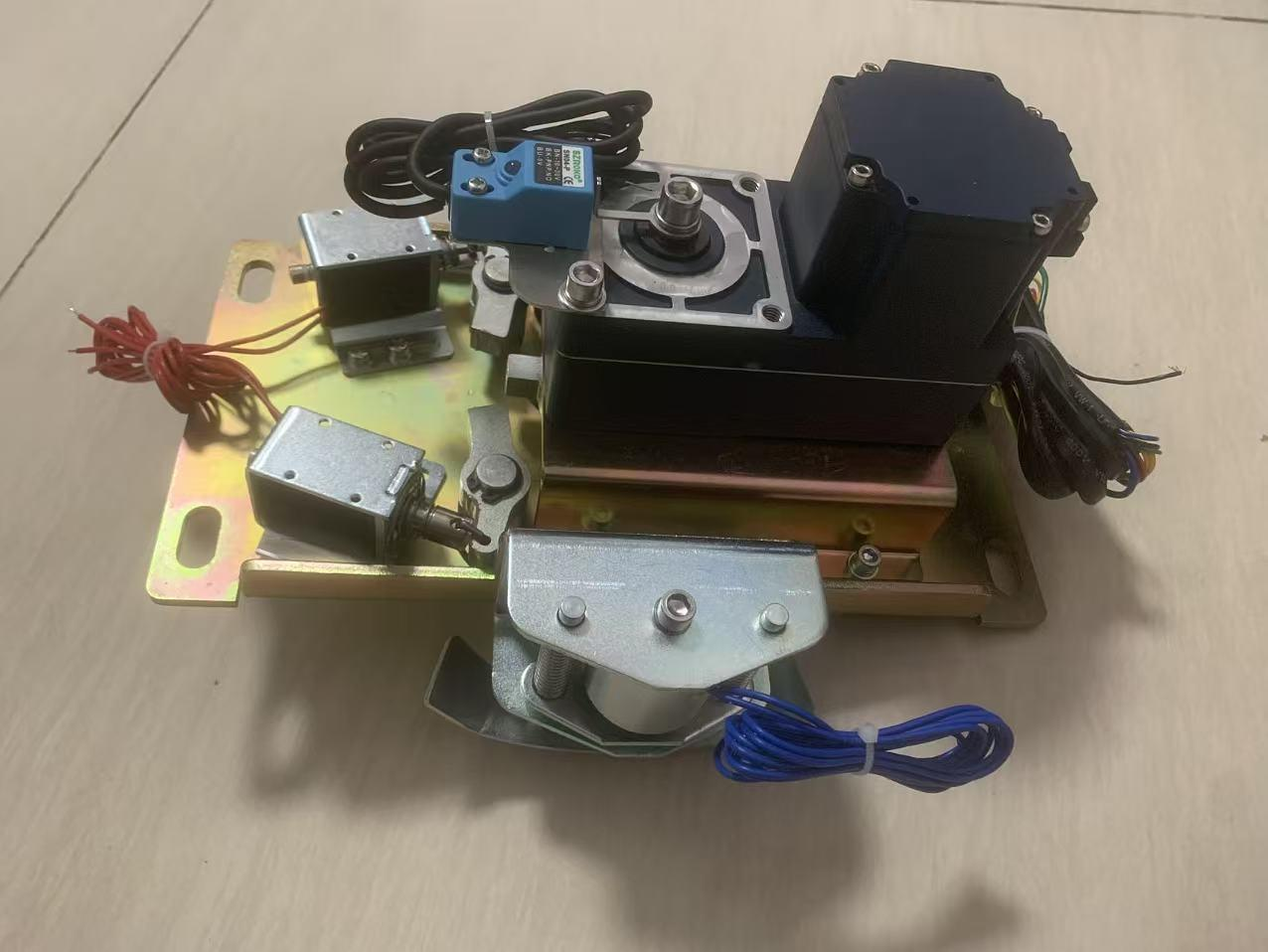

Product Images
