High Speed Rail AB Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor System

Product Categories
Dongguan Rail Safety Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Speed Rail AB Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor System

Supply Ability : 1000units per month

Model Number : stm-001

Application Scenarios : Serves as the opening & closing drive assembly for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Perfectly suitable for narrow installation sites with limited floor space.

MOQ : 2 sets

Delivery Time : 30 to 90 days

Product Name : Speed Gate Core Mechanism

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Price : Discuss based on needs

Optional Motor Configurations : Brushless motor, brushless servo motor, servo motor

Certification : EMC-FCC

Operating temperature : -25°C ~ 75°C

Brand Name : GUIANKEJI

Operating Voltage : DC 24V

Place of Origin : China

Passing speed : 30–40 persons per minute

Packaging Details : Wooden case

Contact Now

Speed Gate Mechanisms Tri-color Indicator Light Clutch Locking Function Infrared Radar Sensor High-speed Rail AB Turnstile Speed Gate Mechanism
Advanced speed gate core mechanism featuring tri-color indicator light, clutch locking function, and infrared radar sensor integration. Engineered for high-traffic access control applications requiring reliability and precision.
Technical Specifications
Product Name Airport / High-speed Rail AB Turnstile Speed Gate Mechanism
Application Scenarios Serves as the opening & closing drive assembly for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Perfectly suitable for narrow installation sites with limited floor space.
Maximum Passage Width Single gate: 900mm; Double gate: 1800mm
Operating Voltage DC 24V
Optional Motor Configurations Brushless motor, brushless servo motor, servo motor
Structural & Performance Features
  • The roller drum is precisely CNC machined from 5.0mm thick seamless SUS304 stainless steel pipe
  • All internal structural components adopt CNC precision processing
  • High-strength bearings guarantee long service life and structural rigidity
  • Sophisticated built-in mechanical structure supports clutch locking and anti-push locking functions
  • Tri-color top indicator light: blue for standby status, green for normal communication/passage, red for unauthorized intrusion alert
  • Reserved mounting positions for infrared radar sensors as required
  • Applicable for both indoor and outdoor installation
  • Passing speed: 30-40 persons per minute
  • Operating temperature: -25°C ~ 75°C
Performance Highlights
Designed for high-efficiency operation with a passing speed of 30-40 persons per minute and robust construction capable of operating in extreme temperatures from -25°C to 75°C.
Product Images
High Speed Rail AB Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor System

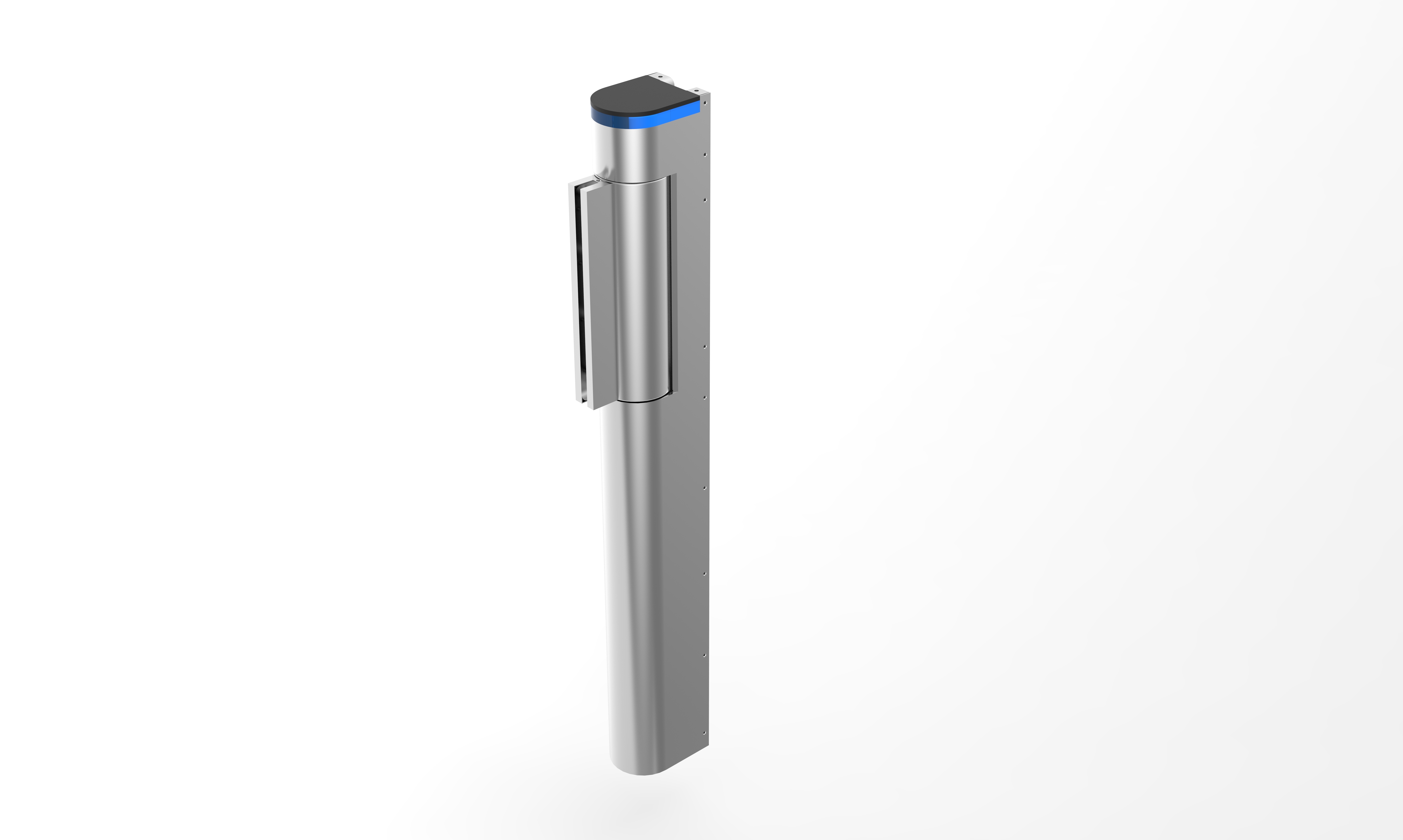

Speed Gate Mechanism installation and external view
High Speed Rail AB Speed Gate Turnstile Mechanism Clutch Locking Infrared Sensor System

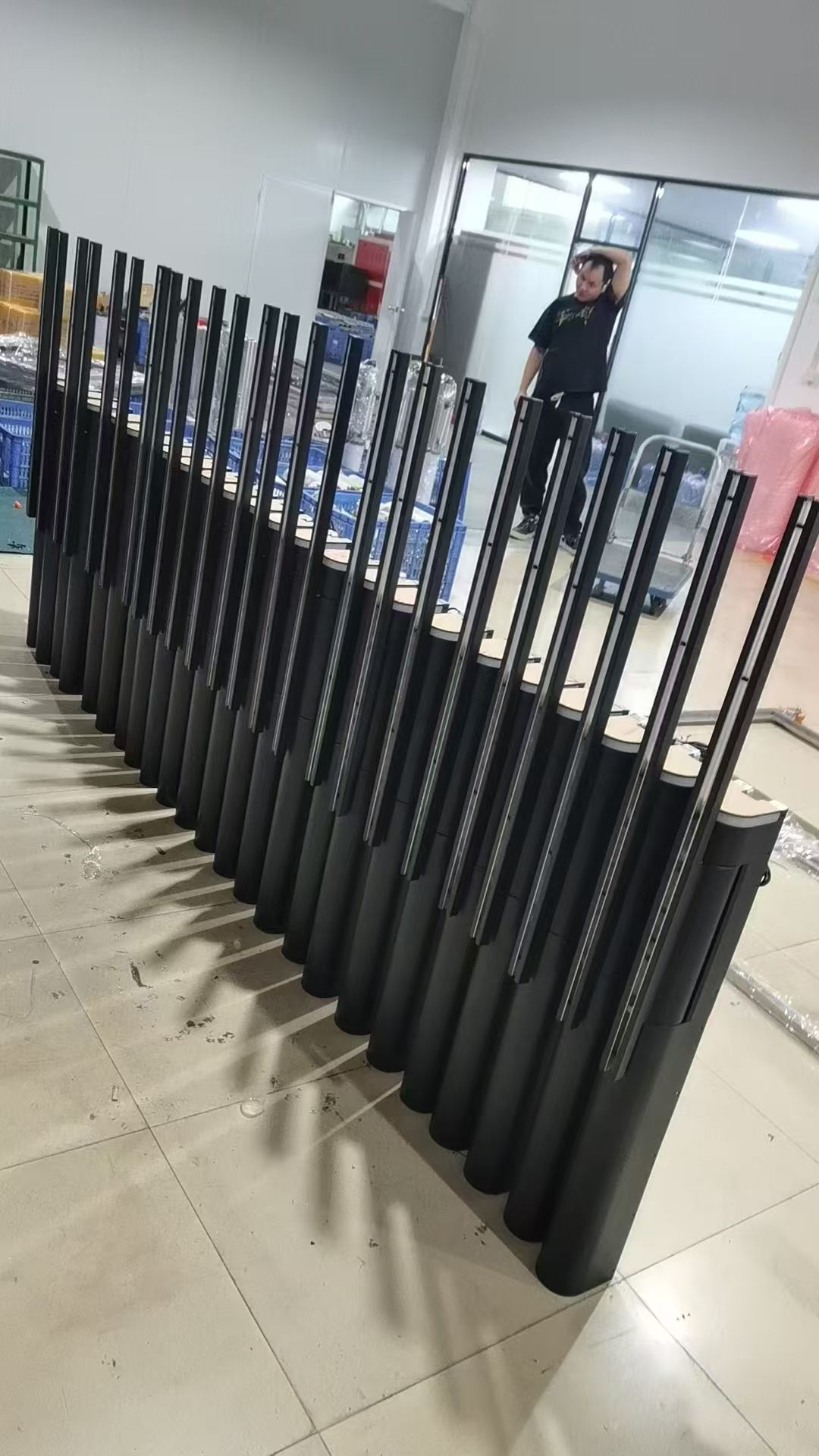

Speed Gate Mechanism internal components and assembly
